Sharing experience of floor drain production in BGL factory

What is floor drain?

Floor drain refers to the drainage device connected between the ground and the drainage pipe system, which is an important connection between the drainage pipe system and the indoor ground Mouth, as an important part of the residential drainage system, its performance directly affects the quality of indoor air, to the bathroom Odor control is very important.

What kinds of floor drains are there?

1. Spring type floor drain

When the water in the spring drain reaches a certain height, if the water gravity exceeds the spring elastic force, the spring will press down on the water

The gasket will open and drain automatically.

2. Magnet type floor drain

When the water pressure is greater than the magnetic force, the sealing pad will open down to drain water, less than the magnetic force, the magnet block suction, sealing

Pad to pull up.

3. Reacting floor drain

Do not need water seal, spring, magnet and other external forces, just use the gravity of water flow and float ball inside the drain, automatically open and close the seal cover

The board. This pattern is similar to a spring, except that the elastic force is converted into a buoyant force to drive the mechanical pull.

4. Silicone type floor drain

When the silicone type floor drain is draining, the bottom of the silicone will be opened by water. After the drainage, the bottom of the silicone will remain due to elastic force and opening

Automatic moisture bonding to achieve anti-odor effect.

How to select functional floor drains?

1, look at the performance; The purchase of floor drain should have certain key points, such as odor prevention, blockage prevention, drainage fluency, service life and so on,

These are the performance that the floor drain should have, but not every floor drain can fully meet the requirements, so when choosing

According to their own needs and performance comprehensive selection.

2, see the use of the location: according to the different areas to choose the appropriate floor drain, such as kitchen water is less used, can choose

The inner diameter size of the floor drain, the shower room needs to be launched fast, it is necessary to choose a large displacement of the floor drain, washing machine water to use

Special floor drain.

3, see the installation height: from high to low, you can choose deep water seal floor drain, T type floor drain and gravity clamshell floor drain in turn, if safe

If the installation height is more than 12cm, it is necessary to choose deep water floor drain sealing. If the installation height is only 6-8cm, it is necessary to choose gravity clamshell ground

Just leak.

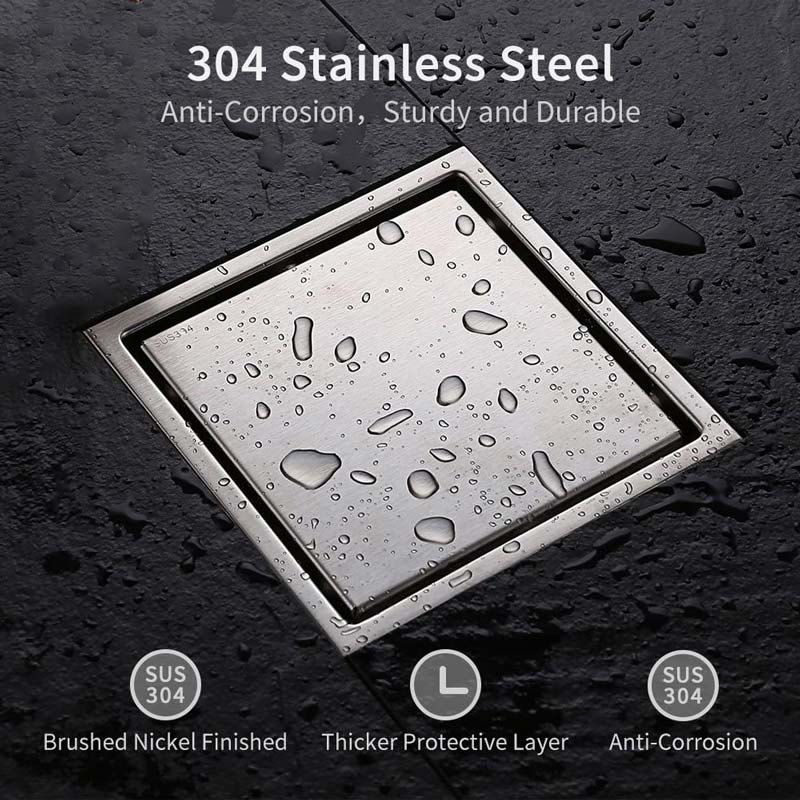

4. Look at the inner core material: there are mainly three kinds of materials: stainless steel, pvc and copper, among which stainless steel is very durable and used

Long life, the price of pvc material is cheaper, but it is easy to aging and cracking, and the corrosion resistance of all copper material is good.

How to choose toilet floor drain?

1. When choosing the toilet floor drain, the first thing to take into account is the size. In general, the surface size standard is

100*100mm. In addition, we should know the inner diameter of the buried water pipe and the size of the water pipe under the floor drain.

2, look at the sealing of the floor drain, this is very important, the floor drain according to the sealing way is divided into two kinds, one is water seal, the other is from

Seal. The floor drain structure of water seal is simple, but if the height of water seal is too low and the use time is long, the odor prevention effect is not very

Well, the self-sealing will not have this problem, its mechanism is complex, the foreign body of the downpipe will not flow out, and the quality

Also very good, it is recommended that you choose self-sealing floor drain, water sealed floor drain can choose dual function.

3. The quality of the floor drain can also be seen through the shape of the floor drain. The general shape is no burr or gap and the surface is flat

The quality is good, if the appearance of the floor drain is not smooth, it is recommended that you do not buy, so as to avoid the problem of blockage.
